Jasnee

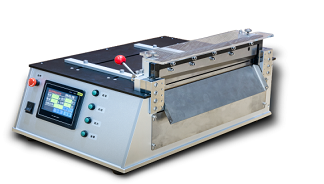

Matrial Cutter

Cut ≤318mm raw material into specific length sheet,such as sample pad,conjugate pad and absorbent pad

Characteristics :

  • Programmable strip cutter cut final width and numbers of strips automatically
  • Capable of cutting various card size
  • Blade leaves a very clean edge and has very long life.
  • Easy to change the blade.
  • Good design to avoid the problems for unsharped edge, sticked strips to blade.
  • Have auto cut , one cut and feed functions.
  • Has memory to recall last steps from previous run.
  • This machine is controlled by PLC.

Specification:

  • Power: 220VAC 50/60HZ 3A
  • Weight: 35KG
  • Size:535(L)×370(W)×275(H)mm
  • Precision:±0.1mm
  • Cutting size:2-300mm
  • Speed:100-500 strips/min
  • Material Width:0-318mm
