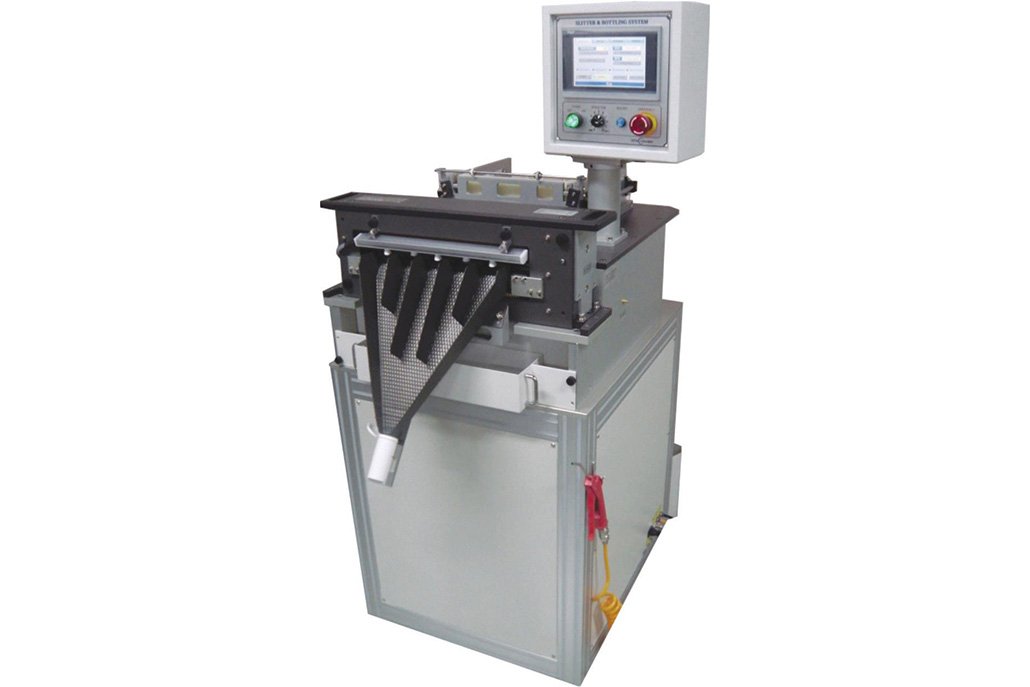

Auto Feeding Rotary Slitter : RAI-500
Auto Feeding Rotary Slitter is a high-speed automated slitting system that automatically loads, positions, and feeds each card for the rotary slitter to convert the card into final strips where the precisely cut strips get quickly and conveniently filled into a bottle.
The integration of the Auto-Feeding Mechanism and the Rotary Slitting module allows for a simple yet very cost-effective solution that increases production efficiency as well as product quality due to the minimal hand-contact process.
Features
• Benefits of automatic slitting system:
– Continuous non-stop operation for increased production output.
(Optional Bottling & Capping System can be integrated for the ultimate in output)
– Consistent cut accuracy ensures reliable product quality.
– The nearly hands-free design reduces safety hazard and contamination factors.
Basic Features
• Touch screen panel allows easy setup and operation.
• Auto-feed by electronic registration and motorized infeed.
• Operation mode available in time-controlled or foot switch for operator’s convenience.
• Built-in static-free Ionizer to reduce strip clinging issue.
• Specially developed blade types for optimized cutting of different materials.
• Easy removal of blade head for multiple cut size needs.
• Specially coated blades for improved lifespan.
Options
Additional blade head for cutting more than one strip size. (e.g. 3, 4, 5 mm, etc.)
Specifications
Card Feeding Method : Automatic (Card Magazine)
Magazine Capacity : Max. 300 cards
Capacity : 720 cards/hour (Based on 5 second card feeding and operator’s job proficiency)
Applicable Card Width : Max. 110 mm
Applicable Card Length : Max. 320 mm
Dimension : (Approx.) 890(L) × 700(W) × 1100(H) mm
Weight : (Approx.) 150 kg
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 0.5KVA, 5A
