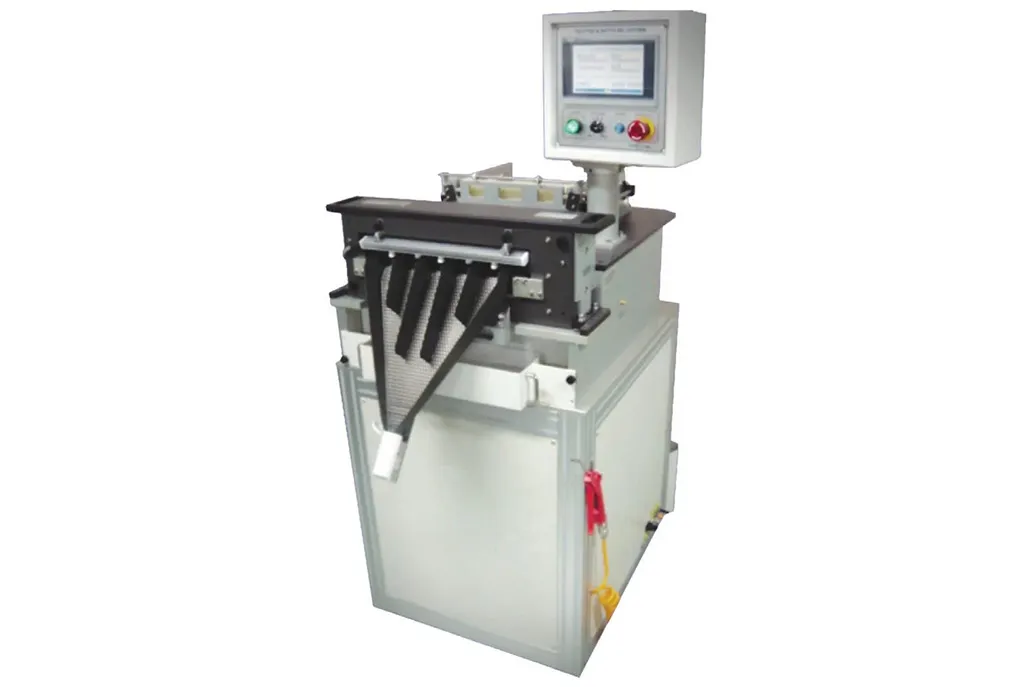

Auto Feeding Rotary Slitter : RAU-600
RAU-600 is a high-speed automated slitting system specifically designed for cutting Urine-assay based finished cards (uncut/master sheet). The system works by automatically feeding each card for the rotary slitter to convert the card into final test strips (dip sticks) where the precisely cut strips get quickly and conveniently filled into a bottle.
The integration of the Auto-Feeding Mechanism and the Rotary Slitting module allows for a simple yet very costeffective solution that increases production efficiency as well as product quality due to the minimal hand-contact process.
Features
• Benefits of automatic slitting system:
– Consistent cut accuracy ensures reliable product quality.
– The nearly hands-free design reduces safety hazard and contamination factors.
Basic Features
• Touch screen panel allows for easy setup and operation.
• Auto-feed by electronic registration and motorized infeed.
• Operation mode available in time-controlled or foot switch for operator’s convenience.
• Built-in static-free Ionizer to reduce strip clinging issue.
• Precision blades deliver crisp-sharp cut edge.
• Specially coated blades for improved lifespan.
Specifications
Card Feeding Method : Automatic (Card Magazine)
Capacity : 720 cards/hour (Based on 5 second card feeding)
Applicable Card Width : 120, 80, 60 mm
Applicable Card Length : Max. 256 mm
Dimension : (Approx.) 1980(L) × 1330(W) × 1490(H) mm
Weight : (Approx.) 150 kg
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 0.5KVA, 5A
