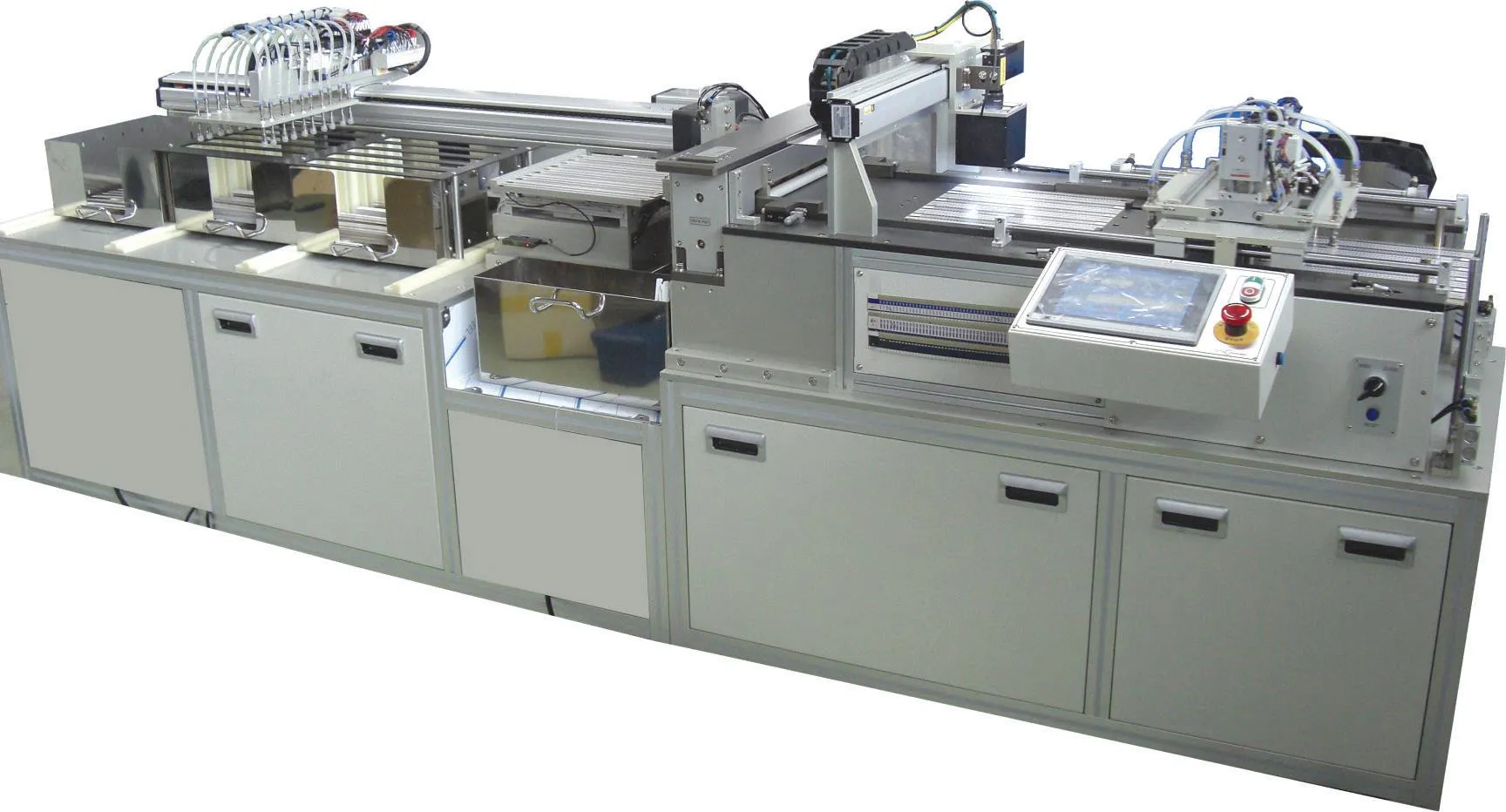

Auto Feeding Row Slitter : RSAG-110
RSAG-110 is an automatic slitting system that slits finished glucose test sheets into smaller widths of row sizes (row card).
The system works by automatically feeding the stacked sheets into the slitter to cut them into rows, the cut rows then go through inspection process where the “Good and Bad” (non- marked
and defects-marked) rows are sorted out to separate storing devices.
The entire operation is automatic and hands-free for the maximum production benefit. (For the next process; see PAG-440 for the good rows and PAG-501 for the bad rows)
Specifications
Applicable Sheet : Finished glucose test sheet
Sheet Loading Capacity : Max 300 sheets
Capacity : About 720 sheet/hour (Based on tact time max. 5 sec)
Slitting Accuracy : ±0.1 mm
Power : 220VAC, 1P, 50/60Hz
Current : 2.2KVA, 10A
Air Requirement : 5-7 kgf/cm² (constant pressure supply)
*System Configuration
Stack Elevator : 200 sheets loading
Finger Carrier tool (Robot and vacuum)
Row Slitter :
• Sheet slit into 10 row : (Or as per customer’s requirement)
• Blade Heat Treatment : High temperature tempering
• Blade Hardness : Rockwell hardness – more than Hrc50
• Blade Coating : Special coating
• Cutting Position is precisely adjustable by built in micrometer (Machine stops automatically when the sensor detects 2 sheets at the same time)
Row Receiver and Magazine
• Cut rows are stacked into each elevator type magazines.
– Conveyor System : Motor and belt system
– System Control : PLC Control – touch screen
– Motor : Adjustable speed control
