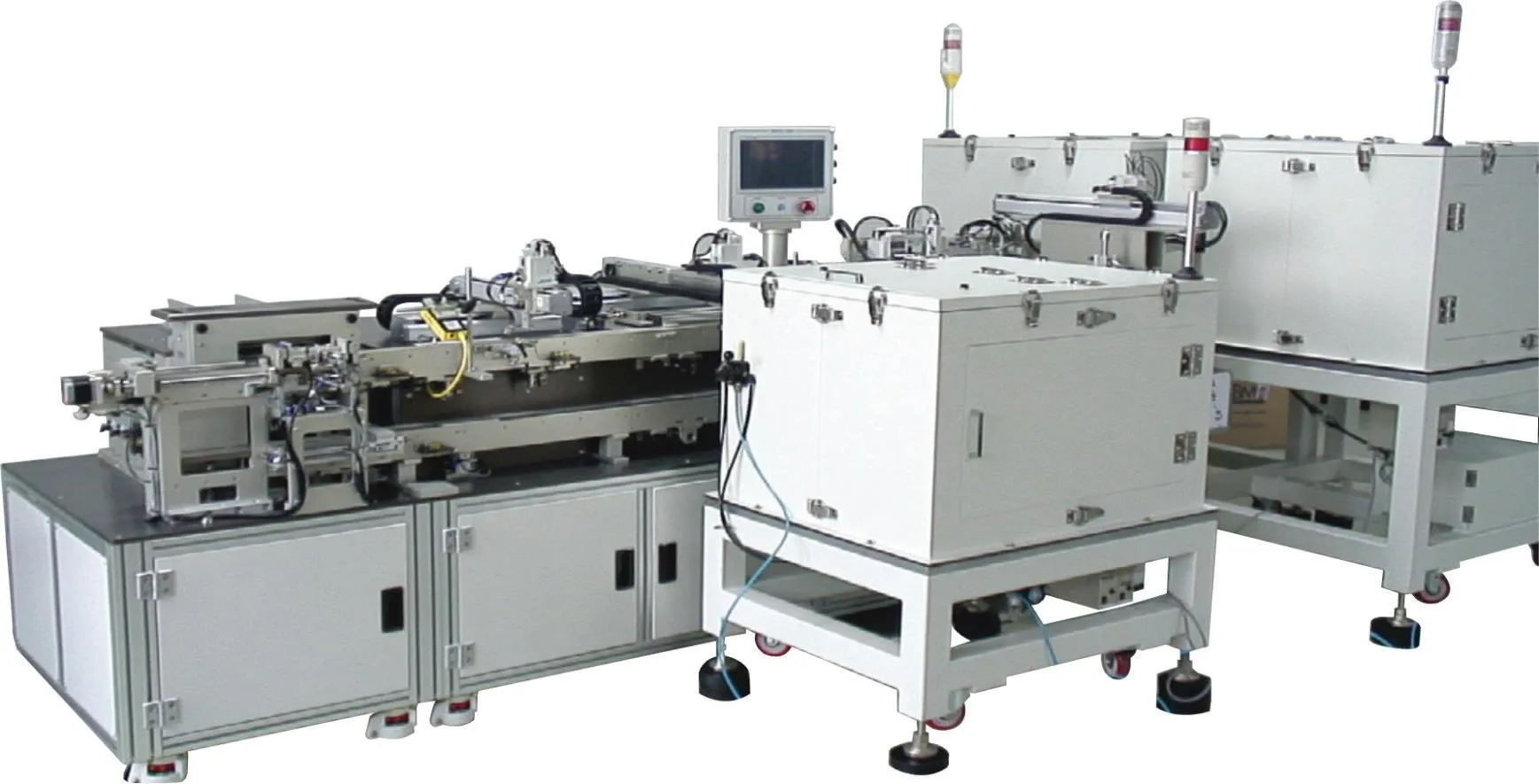

Automatic Slitting & Bottling System
For processing “Bad” (defects-marked) type of row card: PAG-501
[From row to final product]
PAG-501 is a fully-automated slitting & bottling system which is specifically developed to process the “Bad” type of rows that have any number of defective cells.
The system’s operation is similar to the PAG-440 but with an added function of vision inspection where the system automatically fillsup the bottle with only of the
good and acceptable cells (strip) while discarding any types of bad-marked or defective cells. The automatic defect-scrapping process makes this system very cost-effective as it reduces production cost while improving quality control.
Features
• Automatic discarding of defective cells (defects of dispensing, lamination, etc.)
• Non-stop continuous automatic action for the ultimate production benefits.
• Auto bottle-feeding by bowl feeder.
• Robotic modular system for material feeding and transporting.
• Adjustable quantity of cells per bottle (standard: 25cells, option: 10, 50cells)
• High precision slitter for maximum cut accuracy.
• Easy removal of blade head for easy cleaning and maintenance.
Specifications
Required Manpower : 1 person
Capacity : 320 Bottles/hour (Based on 2 defective cells per 25 cells/row)
Row Size : (As per customer’s requirement)
Cut Strip Size : (As per customer’s requirement)
Bottle Feeder : Multiple use for CSP bottle & Sanner bottle (optional)
Applicable Bottle Type : CSP, Sanner, or others (As per customer’s requirement)
Dimensions : (Approx.) 3900(L) x 1200(W) x 1500(H) mm
Weight : NA (Available upon request)
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 3.5KVA, 15A
Air Requirement : 5-7 kgf/cm², clean air
