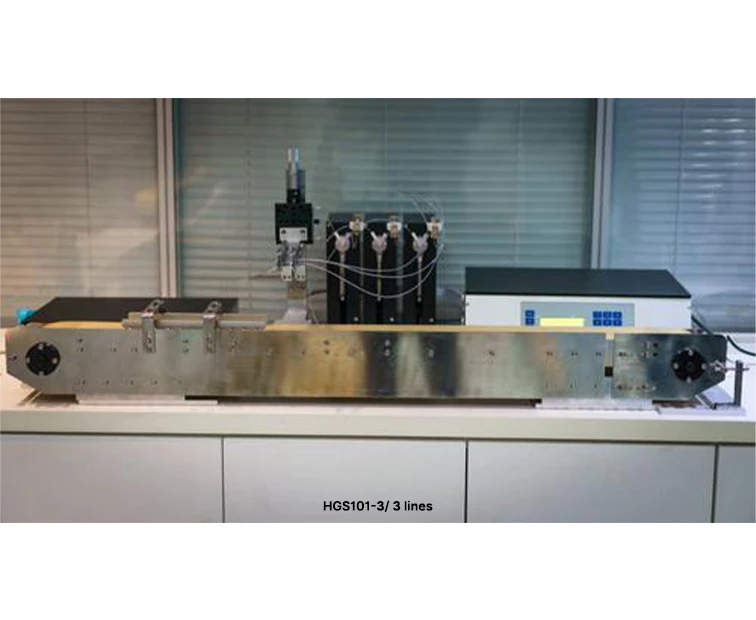

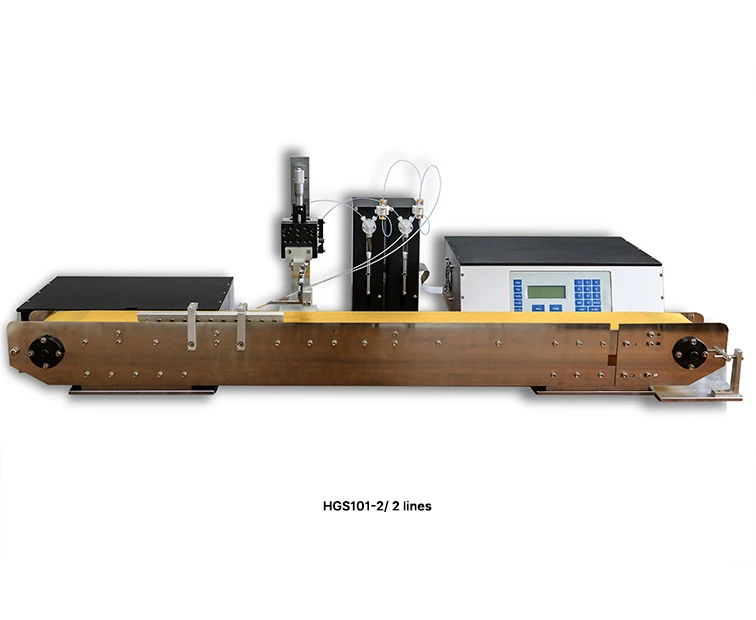

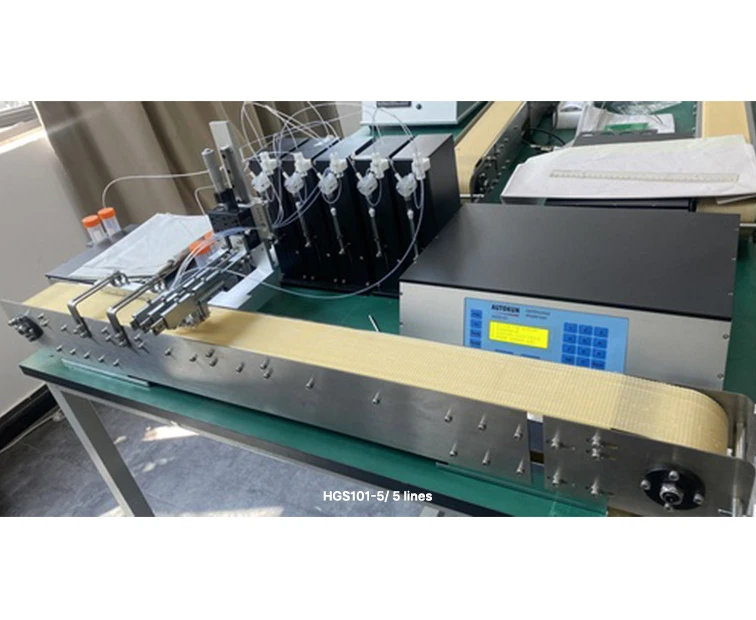

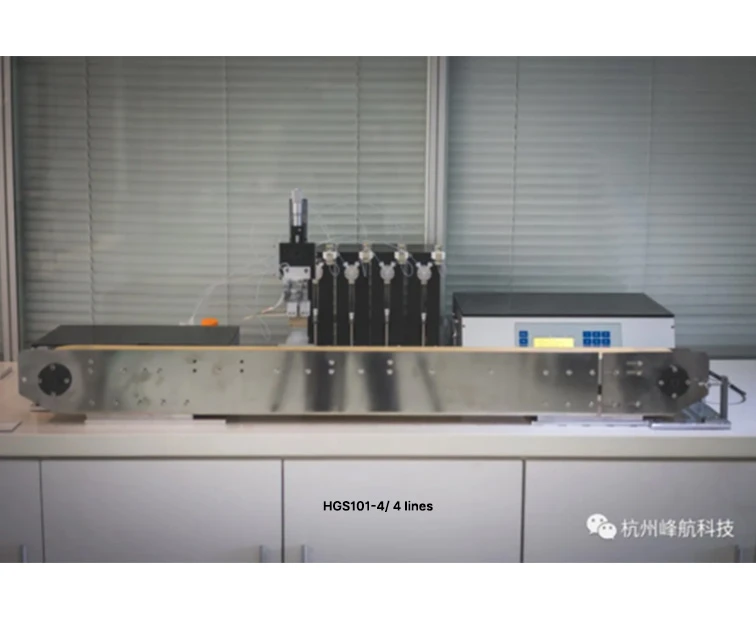

Continuous Dispenser
Model：HGS101
Size：1200*500*400mm
Weight：40KG
Function：The machine can dispense reagents on the NC membrane surface. High efficiency for producing lateral flow strip.
Precision：±0.1mm
Features
One function: dispenser lines
• High efficiency: Comparing desktop dispenser, The efficiency will be more higer than desktop dispenser.
• Low reject rat,: Because of Continous process.
• Precision Pump (XLP6000,48000 microsteps) make sure the volume preciseness
• Specific dispense tip design, PEEK tube in touch, suitable to dispense line on membrane
• Use the Arm micro-chip controller and uc/os operation system to make sure system stable
• Programmable parameters for dispensing volume, speed and spacing
• Easy to operate little reagent to dispense line, spray line
• Micrometer adjuster controls tip height and Air pen hole size.
• Easy operation and Durable and maintenance free design
Specifications
Power： 90-250VAC 50/60HZ 3A
Weight： 40KG
Size： 1200(L)×500(W)×400(H)mm
Volume accuracy：±0.1%
Position Precision：±0.1mm
Continous Speed: 1-8 m/min
line Space: >2 mm
Syringe size: 2.5 ml
