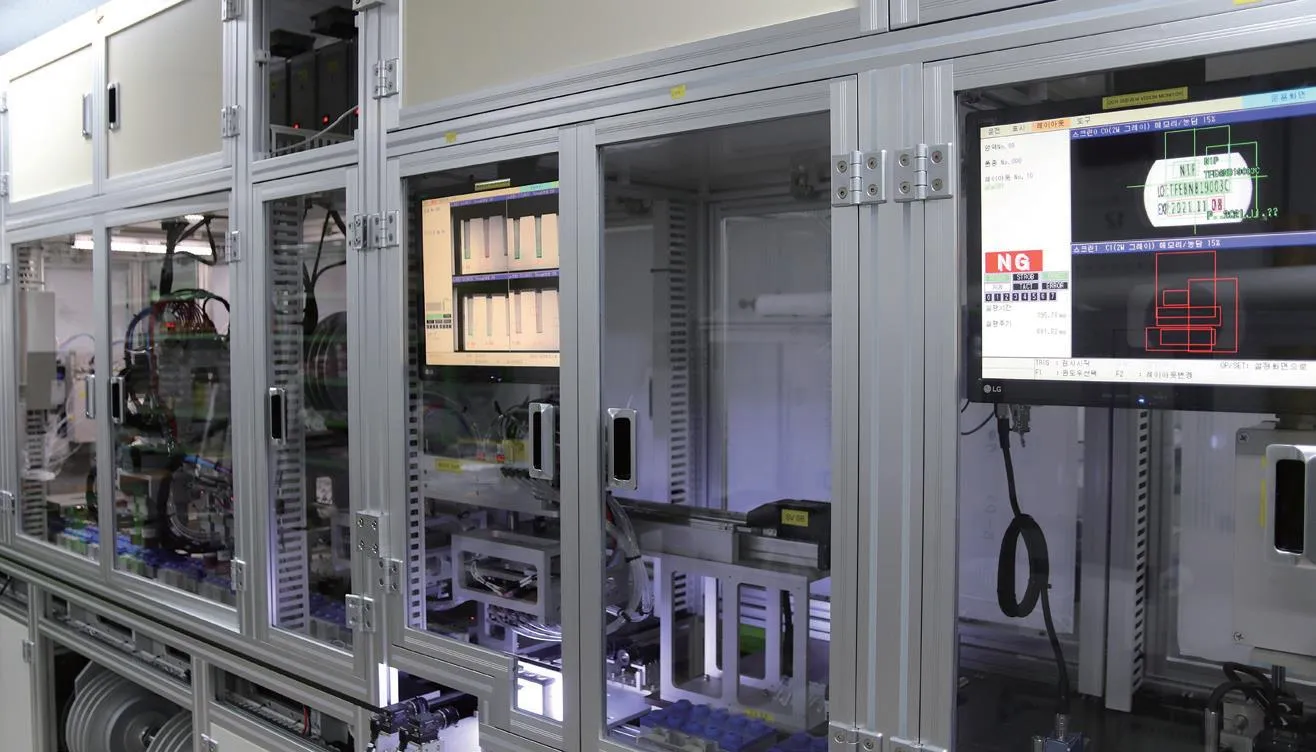

Filling & Sealing (Induction) System : FSS-HFW101
This machine is an automatic bottling equipment designed to fill and seal various types of containers (tubes, vials or bottles) with liquid.
The system works in the similar way as the FSS-101 except that this system uses the electromagnetic induction sealing method (preferred method for heat sensitive product) instead of the conventional heat sealing method.
The system is fully customized with a number of options including vision inspection that tailor-fit to your specific type of containers used, printing requirements as well as for final packaging process.
Main Process / Configuration
Automatic feeding of containers via hopper feeder, bowl feeder and linear feeder
(Dual Rail Type)

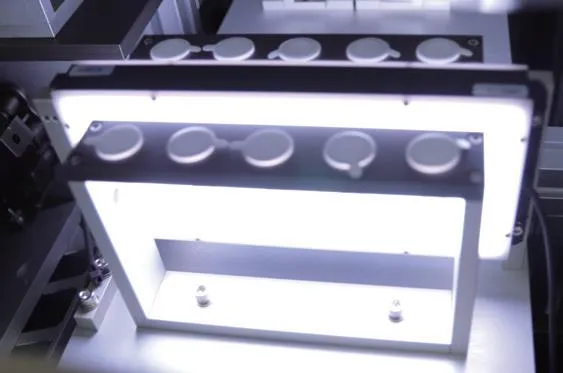

Inspection system (sensor or vision) – (NG product auto rejected) : option
(1) before filling process : dirt / foreign substance in container
(2) after filling process : filling status of container

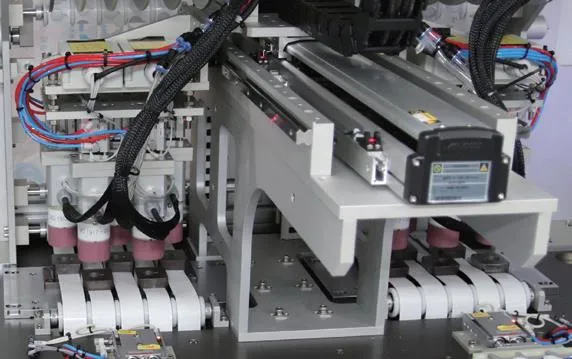

Dispensing preset amount of liquid into containers via Multi Pumps
Sealing via Induction Head
Printing of containers – lot no. & product name (option)
Discharging of Finished/Good product
Specifications
Required Manpower : 1 person
Containers Feeding Method : hopper feeder, bowl feeder and linear feeder
Capacity : About 48,000 pcs/8hr
Filling Volume : As per customer’s requirement
Filling Material : As per customer’s requirement
Inspection : Sensor (or vision) inspects the fill-status of finished
Pump & Syringe : 12 channel syringe multi pump
Sealing Method : Induction type
Dimension : (approx.) 4800(L) x 2600(W) x 2000(H) mm
Power : 220VAC, 1 P, 50/60Hz
Air Requirement : 5 ~ 7 kgf/cm (Regulated air supply}
