Features

• Can produce 30,000 to 70,000 tests per hour
• Dispense 1 to 8 different reagents simultaneously
• Dispense rate set digitally from 0.01 µL/mm to 50 µL/mm
• Dispense speed set digitally from 10 to 150 mm/second
• Dispense onto membranes up to 120mm wide
• Dispense on back or un-backed membrane, with or without liner
• Individual dance arms precisely control tension in each web
• Reels have a 3″ standard core internal diameter and 16″ outer diameter

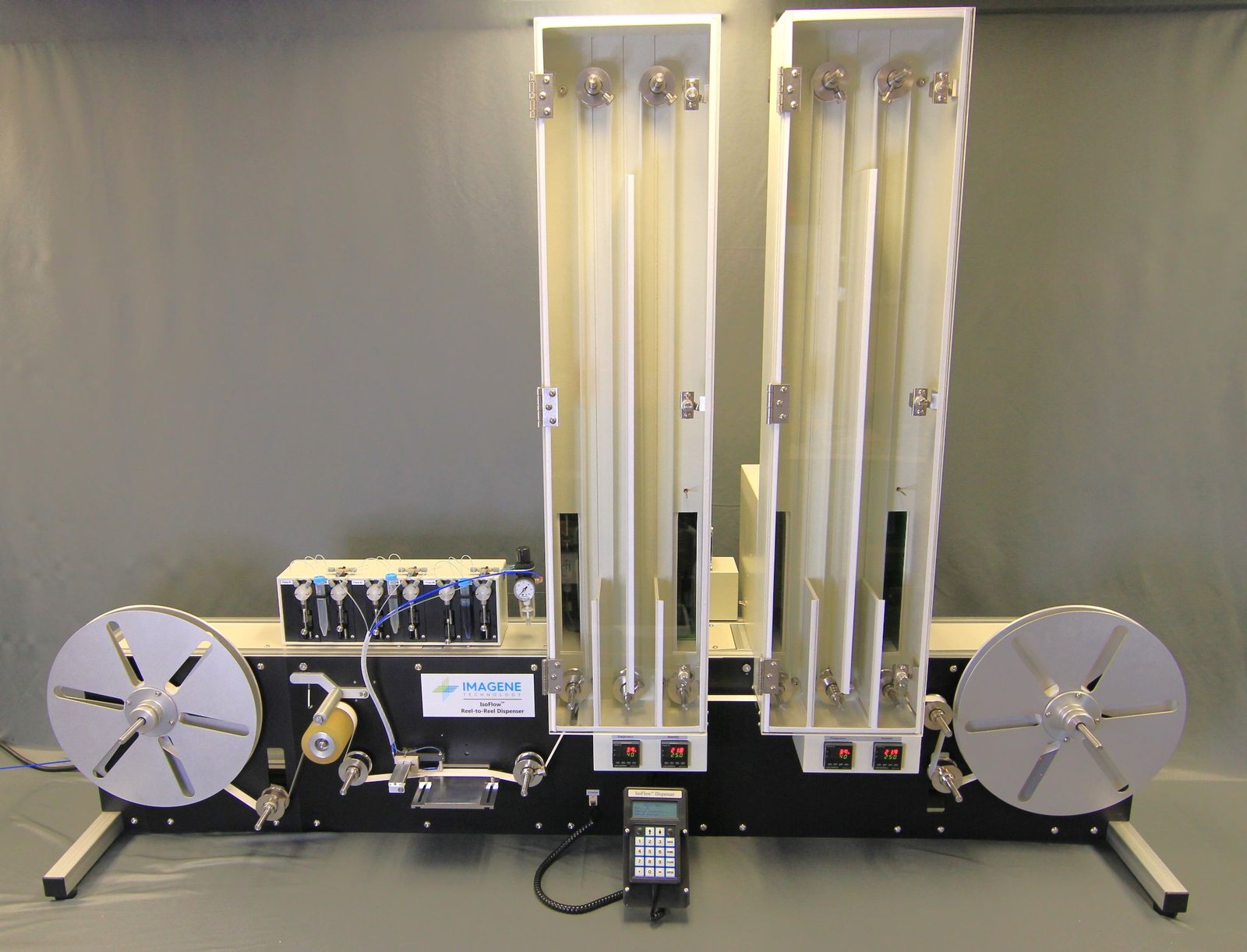

• Drying Tower
– 4 meter drying tower standard
– Second tower optional
– Tower temperature 30-60°C
• Dimensions (for a standard 2 Reel, 1 drying tower system)
– 1.37 meters (54″) tall
– 1.8 meters (71″) long
– 0.5 meters (20″) wide
– Weight 122kg (270 lbs.)
• Power 2200 watts – 220 VAC, 50/60 Hz
