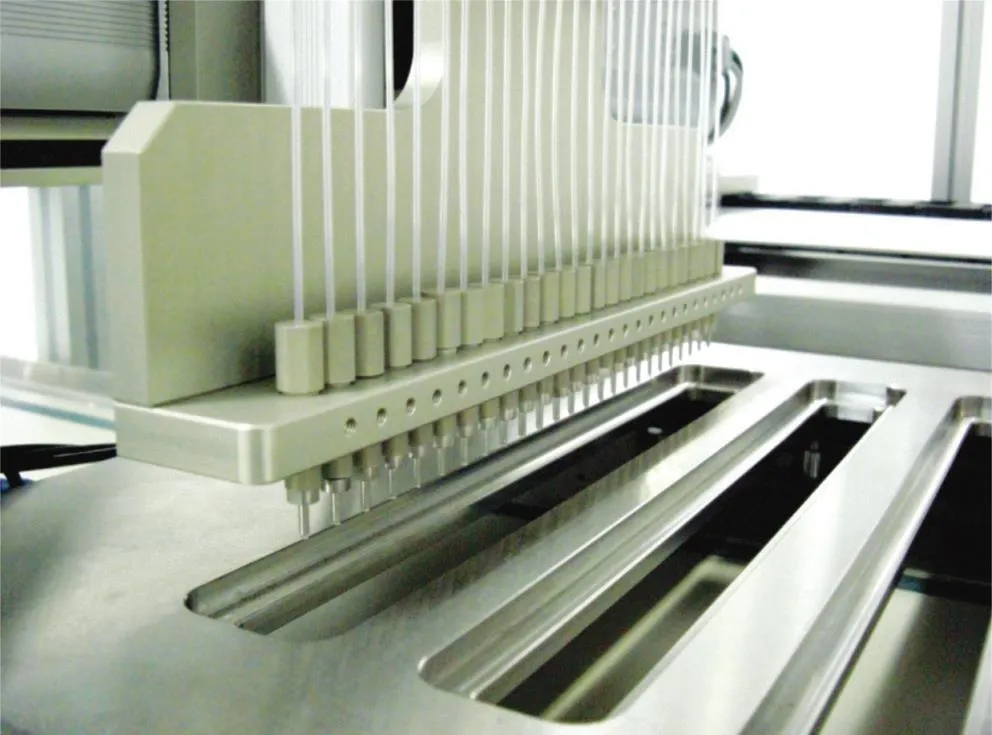

Multi-channel Dispenser : DSG-025
DSG-025 is a precision reagent dispensing system specifically developed for production efficiency and throughput. This custom solution can be made to fit from 1 to 25 or more (as per customer’s requirement) dispensing channels for simultaneous dispensing onto printed glucose sheets.
Features
• Multi-channel lines for the ultimate dispensing production efficiency and throughput.
• Programmable touch screen panel allows for easy setup and operation.
• Dispensing selection of line or dot.
• Reversible pump allows for easy functions for purging, cleaning, and reclaiming.
• Micrometer for fine-adjustment of space between dispensing lines and tip height.
• Adjustable dispensing volume (total and per cm) and bed feeding speed.
• Equipped with advanced precision robotic conveyance system.
• Separate pumps per channel ensure accurate dispensing vol., easier control and higher stability.
• Tip cleaning function to upkeep dispensing accuracy.
Specifications
Applicable Sheet Size : Max. 320 x 320 mm
Dispensing Volume : Micro-liter to nano-liter (As per customer’s requirement)
Pump : Hi-resolution pump
Accuracy : < 1.0% deviation from expected result at full stroke
Precision : ≤ 0.05% CV at full stroke
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 0.6KVA, 6A
