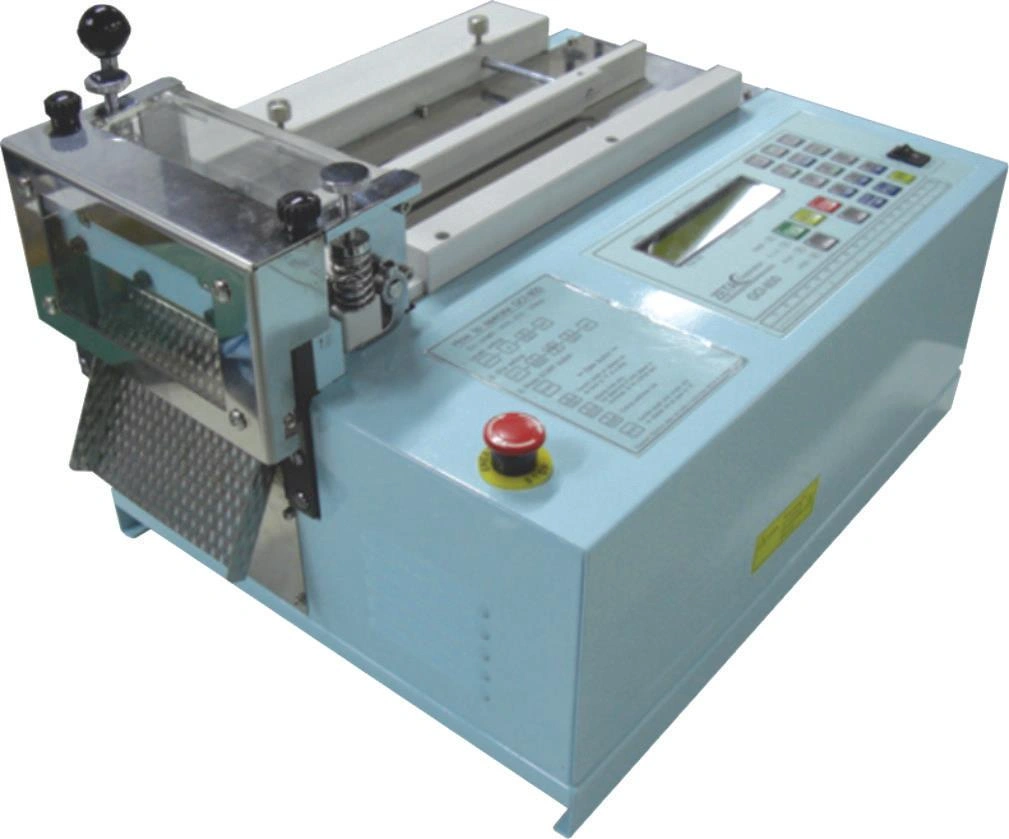

Programmable Guillotine Cutter : GCI-800
Programmable Guillotine Cutter is a heavy-duty programmable cutting instrument that cuts various types and sizes of finished cards/sheets into final strips. The unit works by manually loading the card or sheet onto the feeding guide where the guillotine blades cut the card into strip width one at a time.
As the cutting width can be easily changed for those with several cutting (strip size) requirements and with its low-cost, it is an ideal unit for R&D or any production scale facilities.
Features
Cost-Effective
• One machine can handle multiple cutting requirements.
• Cutting loss is minimized to about 15 mm (leftover at the end part of card).
*Can be reduced to less than 5mm when continuously fed.
User Friendly
• Quick & Easy programmable key pad allows for:
– Easy adjustment of cut width and speed.
– Smart memory function saves up to 10 job settings.
• Automatic cutting process (Simply input desired data & start).
• Simple operation for minimal maintenance.
Performance
• High-speed cutting operation
• Accurate precision cuts (Cutting accuracy: ±0.1mm)
• Specially coated blades for improved lifespan.
Flexible
• Adjustable cut strip width
• Handles wide range of card size (Up to 100mm width).
• Compact & Lightweight for portability.
Options
• Anti-static Ionizer to reduce the issue of “strip clinging on blades” and etc.
• Air Blower to reduce the issue of “strip clinging on blades” due to excessive glue build-up.
• Spindle attachment to cut materials in roll form.
Specifications: GCI-800
Card Feeding Method : Manual
Capacity : Max. 240 strips/minute (Based on 3mm cutting width)
Applicable Card Width : Max. 100 mm
Applicable Card Thickness : Max. 2.5 mm (Depends on the characteristics of card)
Cutting Range (Width) : 2.0~99,000 mm
Cutting Accuracy : ±0.1 mm
Strip Count : Auto stop control
Blades : Hardened steel with titanium-coating
Dimension : (Approx.) 400(L) × 300(W) × 260(H) mm
Weight : (Approx.) 20 kg
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 0.3 KVA, 3 A
Specifications: GCI-800 With Spindle Option
Capacity : Max. 270 strips/minute (Based on 3mm cutting width)
Glass Fiber (plastic card) Feed : Manual or by roll
Glass Fiber (plastic card) Size : Width: Max. 100 mm, Thickness: Max. 2.5 mm
Dimension : N/A (Available upon request)
Weight : (Approx.) 30Kg
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 0.3 KVA, 3 A
