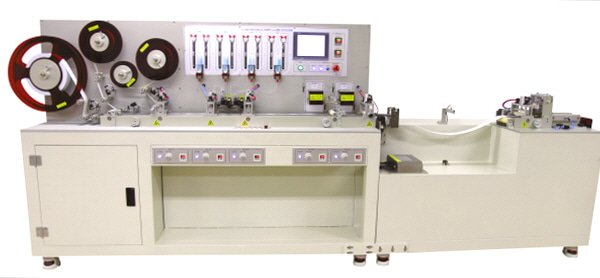

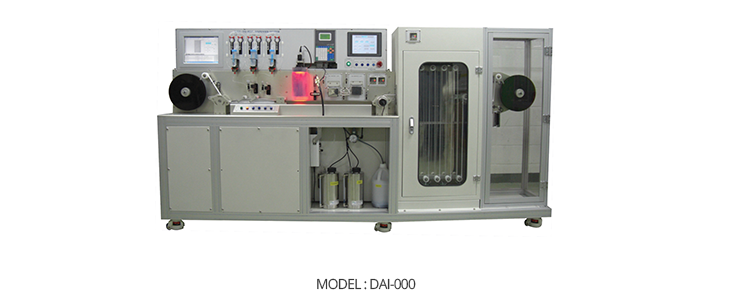

Features
• BENEFITS OF R2R AUTOMATIC PROCESS
– Ultimate in throughput (about 40min. /roll 100m)
– Quality control by vision inspection module (Option).
– Minimal required labor for cost-reduction.
• DRY OVEN
– Digitally controlled temperature ensures QC.
– Built-in sensors to prevent overheating.
Basic Features
• Built-in vision inspection and bad part marking system for quality control.
• Tension controller for smart winding operation.
• Touch screen panel allows easy setup and operation.
• Quick & easy parameter programming for dispensing vol., speed, length, and spacing.
• Dispensingmode selection of line or dot.
• Reversible pump enables EZ purging, cleaning, and removing air bubble.
• Re-claim function easily re-collects unused remaining reagent within syringes and in tubing lines.
• Built-in micrometer for precise tip height adjustment.
• Precise adjustments of tip dispensing position.
General Specifications
• Membrane Roll Size: Width 25.5 mm, Length 100 m(Requirement dependent)
• Dispensing Lines: Up to 5 dispensing lines
• Feeding Speed: 10~120 mm /sec
• Dispensing Volume: *Tubing Tip : 0.2~10㎕/cm*Sapphire Tip : 0.6~10㎕/ cm
• Accuracy (pump): < 1.0% deviation from expected result at full stroke
• Precision (pump): ≤ 0.05% CV at full stroke
• Dry Oven: Temp 30~60℃, (Membrane length in chamber : 7.5 m)
• Dimension: (Configuration Dependent) 2300~3500(L) × 900(W) × 1900(H) mm
• Weight: (Configuration Dependent) 400 ~ 600 kg
• Power: 110 or 220VAC, 1P, 50/60Hz
• Current: 0.3KVA, 3A
• Compressed Air: 4~5 kgf/㎠
