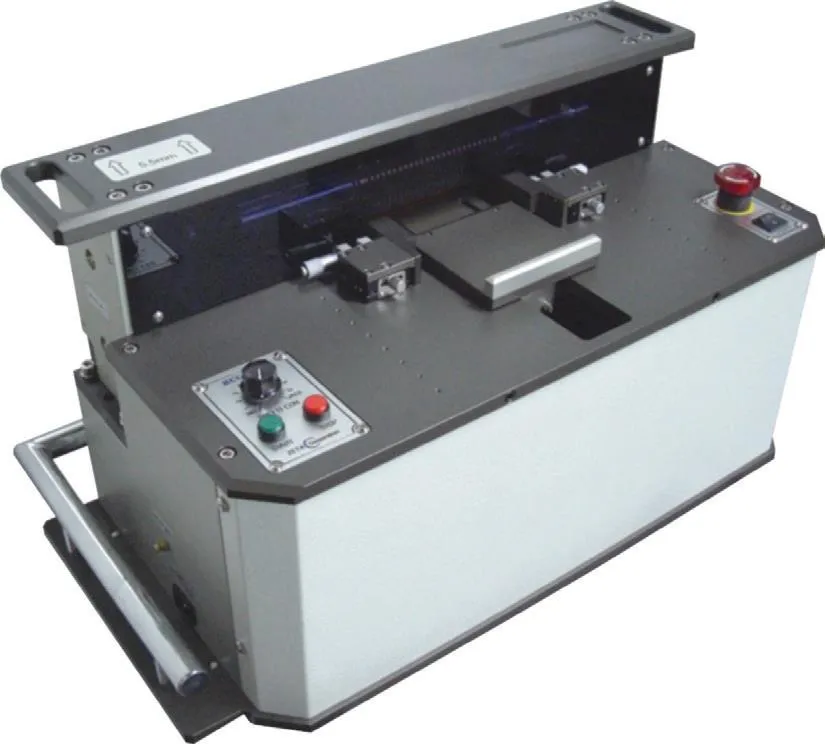

Rotary Slitter : RCG-100
RCG-100 is a high speed cutting instrument which is designed to slit a wide range of glucose test strip products, typically of row sized sheets (row card) into final individual test strips (cells).
This simple yet highly efficient unit works by manually loading the cut material into the blades for swift slitting process where the cut strips are discharged onto a collection tray or down the chute (optional) for quick and convenient collection into a bottle.
Features
Quality & Performance
• Increased productivity: Entire card is cut into strips instantly in one pass.
• Solid construction with top quality components for durability.
• Specially coated blades for improved lifespan.
• Built-in anti-static Ionizer reduces strip sticking issue due to static cling.
Ease of Use
• Simple operation and low maintenance provides for hassle-free usage.
• Convenient QC access: As the cut strips are uniformly spread out on the collection tray, defects
in strips (improper dispense coating, gluing, length, etc.) can easily be identified for removal.
FOR CUTTING GOOD ROWS ONLY, Chute can be optioned.
Options
• Collection chute for quick and convenient strip bottling.
Specifications
Row Feeding Method : Manual
Capacity : 720 rows/hour (Based on 5 second feeding interval)
Row Length : Max. 280 mm
Row Width : Min. 25 mm
Dimension : (Approx.) 682(L) × 410(W) × 365(H) mm
Weight : (Approx.) 86 kg
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 0.5KVA, 5A
