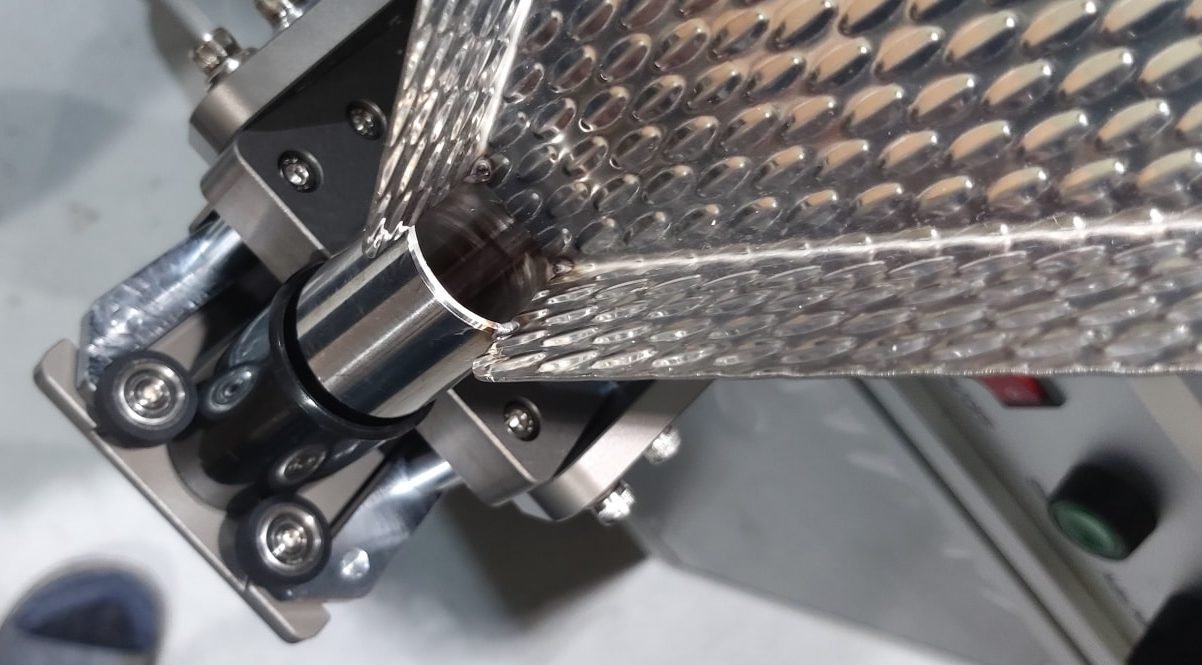

SHC-9000 BAF Rotary Slitter for Blood Glucose strip
This auto feeding rotary slitter cut the card laminated with L1, L2 and L3 by specific width and release through a chute and fill into a bottle.
Features
• Easy operation by user friendly design
• Low cutting error by precise cutting blades
• Longer use life span using by titanium coated blade
• Minimized maintenance cost by simple operation
• Minimized strip’s sticking to the blade by adopting antistatic ionizer
• Reduce the contamination by minimal hand contact process
Specifications
• Model Name: SHC-9000BAF
• Applicable product: Card with enzyme dispensed
• Capacity: 900 Cards / hr
• Card length: Max. 320 mm
• Card width: Max. 130 mm
• Card depth: 2.5 mm
• Card feeding: Auto feeding
• Strip width: 3~8 mm
• Dimension: Approx. 600 (W) x 1,060 (L) x 1,140 (H)mm
• Weight: Approx. 1,140 Kg
• Power supply: AC 110/220 V, 50/60 Hz
