XYZ Dispenser : DMG-000

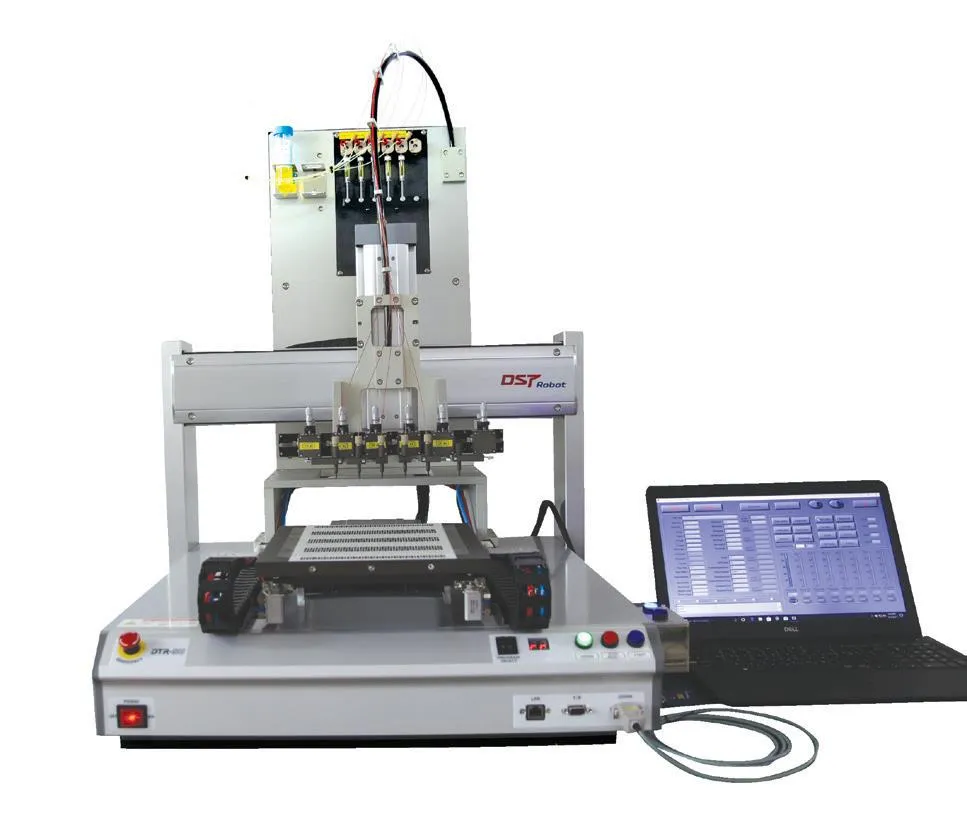

DMG System with its XYZ motion is a sophisticated dispensing instrument that offers the most flexibility in reagent application for the development and production of Glucose test products (Biosensors and Biochips).
The unit is capable of dispensing a fixed volume of divided multiple shots (our proprietary technology) in different patterns onto typically of glucose sheets.
PC control (Laptop included) allows for the ease of set-up and operation in which numerous programs can be stored and accessed. This sophisticated and versatile system is ideal for those who require specific to complex dispensing needs.
Features
• High speed dispensing allows for increased productivity.
• Divided multiple dispensing enables for more firm positioning of reagent on material surface
and more precise control of dispensing volume (Solenoid-valve type)
• Dispensing pattern can be freely adjusted by high-resolution XYZ positioning system.
• Easy programmable parameter for dispensing volume, speed, length, pattern, and modes.
• Numerous programs can be memorized in the PC.
Specifications
* Dispensing
– Dispensing Lines : 1~8 lines
– Dispensing Volume : Micro-liter to nano-liter (As per customer’s requirement)
– Accuracy Ratio (pump) : < 1.0% deviation from expected result at full stroke
– Precision Ratio (pump) : ≤ 0.05% CV at full stroke
* Mechanical
– Table Speed : * XY: 500 mm/sec, * Z: 250 mm/sec
– Work Range : * X axis: 400 mm, * Y axis: 400 mm, * Z axis: 100 mm
– Position Accuracy : * X axis: < 0.02 mm, * Y axis: < 0.02 mm, * Z axis: < 0.01 mm
– Max. Payload : * X-Y axis: 15 kg, * Z axis: 7 kg
– Dimensions : (Approx.) 78(L) x 75(W) x 82(H) cm
– Weight : (Approx.) 70 kg
– Power : 220VAC, 1P, 50/60Hz
– Current : 1.1KVA, 5A
