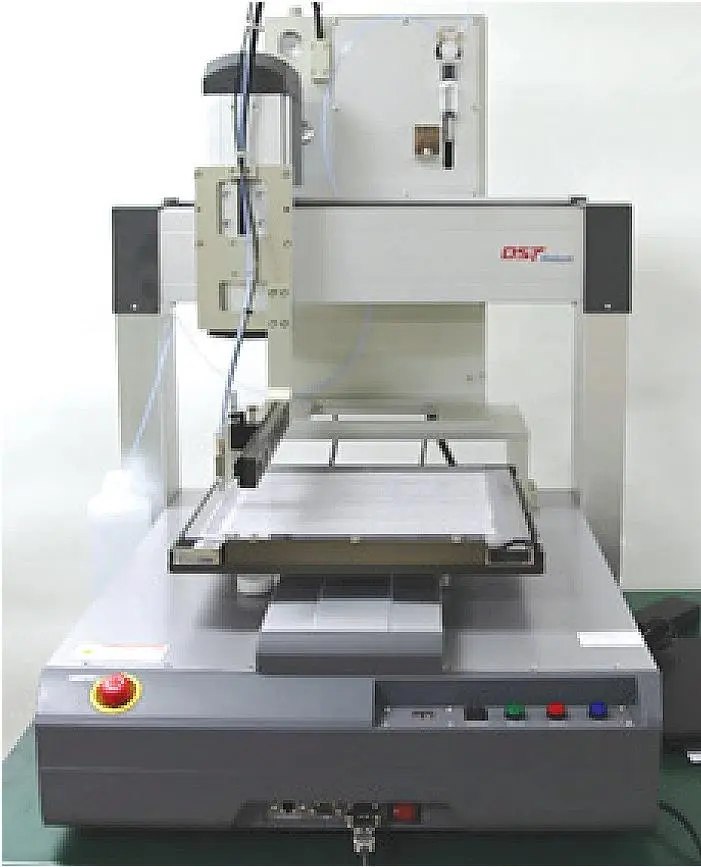

XYZ Dispenser : DMI-000
DMI System with its XYZ motion is a sophisticated dispensing instrument that offers the most flexibility in reagent application for the development and production of Immunoassay test products.
The unit is capable of dispensing a fixed volume of divided multiple shots (our proprietary technology) in different patterns onto various materials such as membrane, card, and pads.
PC control (Laptop included) allows for the ease of set-up and operation in which numerous programs can be stored and accessed. This sophisticated and versatile system is ideal for those who require specific to complex dispensing needs. TIP: For general mass-production dispensing only, please refer to DCI system.
Features
• High speed dispensing allows for increased productivity.
• Dispensing pattern can be freely adjusted by high-resolution XYZ positioning system.
• Easy programmable parameter for dispensing volume, speed, length, pattern, and modes.
• Able to handle various types of cards and/or pads.
• Numerous programs can be memorized as preset file i
General Specifications
* Dispensing
Dispensing Lines : 1~8 lines
Dispensing Volume : * Tubing Tip: 0.2~10㎕/cm
Accuracy Ratio (pump) : < 1.0% deviation from expected result at full stroke
Precision Ratio (pump) : ≤ 0.05% CV at full stroke
* Mechanical
Table Speed : * XY: 500 mm/sec, * Z: 250 mm/sec
Work Range : * X axis: 400 mm, * Y axis: 400 mm, * Z axis: 100 mm
Position Accuracy : * X axis: < 0.02 mm, * Y axis: < 0.02 mm, * Z axis: < 0.01 mm
Max. Payload : * X-Y axis: 15 kg, * Z axis: 7 kg
Dimensions : (Approx.) 780(L) x 750(W) x 820(H) mm
Weight : (Approx.) 70 kg
Power : 110 or 220VAC, 1P, 50/60Hz
Current : 0.3KVA, 3A
